Spektrum A4040 MT/HS Micro Metal Gear HV Servo for Servos
Original price was: $54.99.$38.49Current price is: $38.49.
- Shop the Best Quality Online
- Shop with confidence, we guarantee quality.
- Shop with ease, buy with confidence.
- No-Questions-Asked Returns

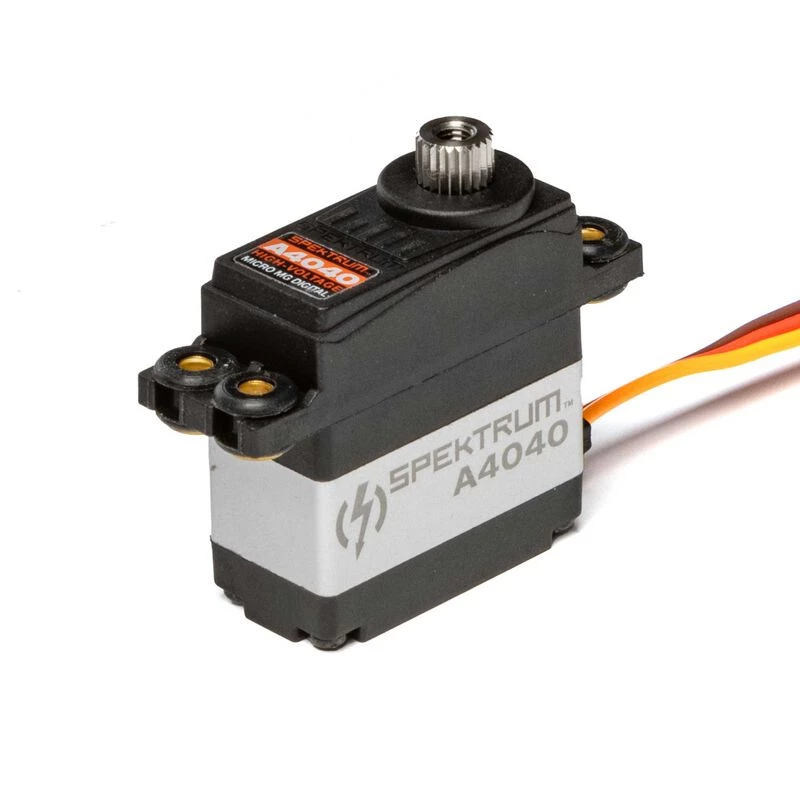

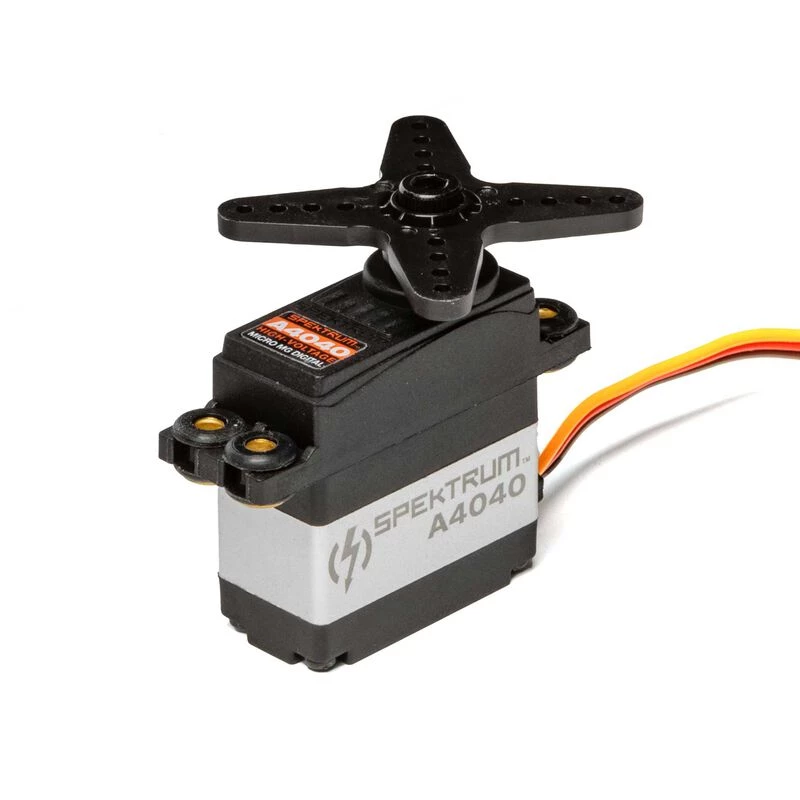

A4040 HV Mid Torque High Speed Digital Micro MG Servo
The Spektrum™ A4040 digital micro, metal gear servo offers extraordinary performance for park flyer size (15-25 size) and specialty aircraft applications. High voltage capable, the A4040 can produce 7.0kg-cm (96 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A4040 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A4040 delivers reliability, consistency and performance that are second to none.
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Micro size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
| Deadband | <1µs |
|---|---|

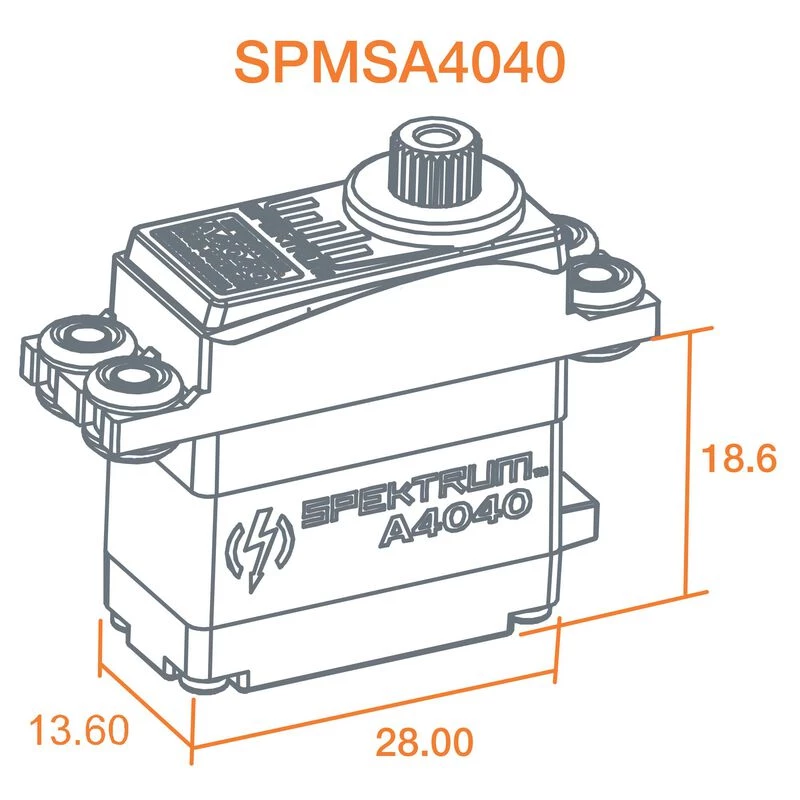

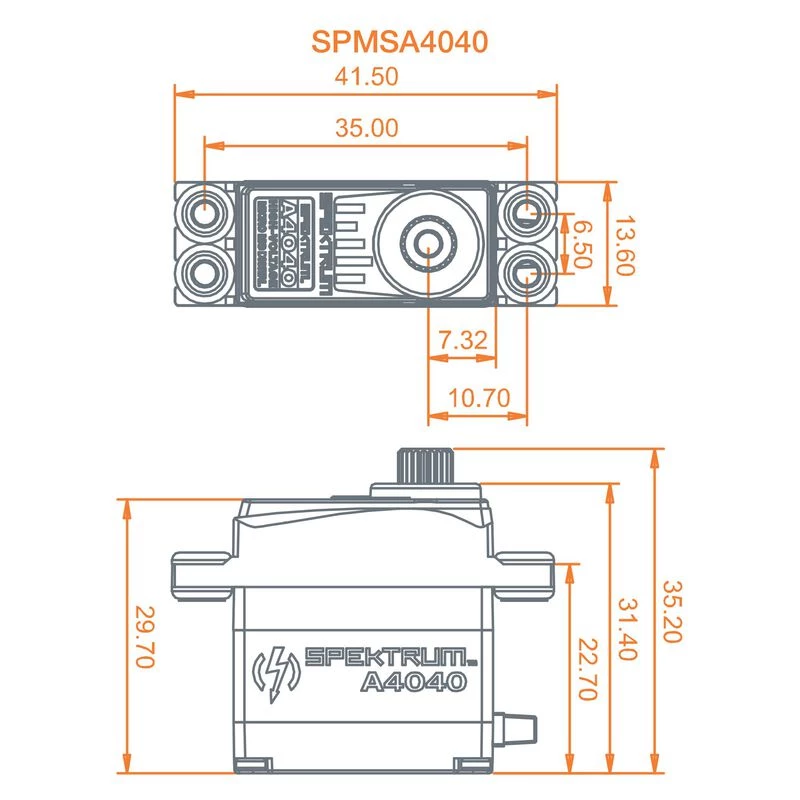

| Product Length | 1.1", (28, mm) |
| Servo Operating Voltage | 4.8, -, 8.4V, (HV) |
| Product Width | 0.54", (14, mm) |
| Maximum Servo Torque | 84, oz-in, (6.05kg-cm), @, 6.0V;, 91, oz-in, (6.55kg-cm), @, 7.4V;, 96, oz-in, (7kg-cm), @, 8.4V |
| Spline Count | 23, -, Tooth |
| Product Weight | 0.9oz, (26g) |
| Overload Protection | No |
| Max Servo Torque | 40-99, oz-in |
| Maximum Servo Speed | 0.16, sec/60, deg, @, 6.0V;, 0.12, sec/60, deg, @, 7.4V;, 0.10, sec/60, deg, @, 8.4V |
| Input Voltage | 4.8V-8.4V |
| Gear Type | Metal |
| Bushing Or Bearing | Bearing |
| Bearing | Single, BB |
| Servo Size Category | Mini, and, Micro |
| Material | Aluminium |
| Servo Type | Digital |
| Product Height | 1.23", (31, mm) |
| Motor Type | Brushed |
