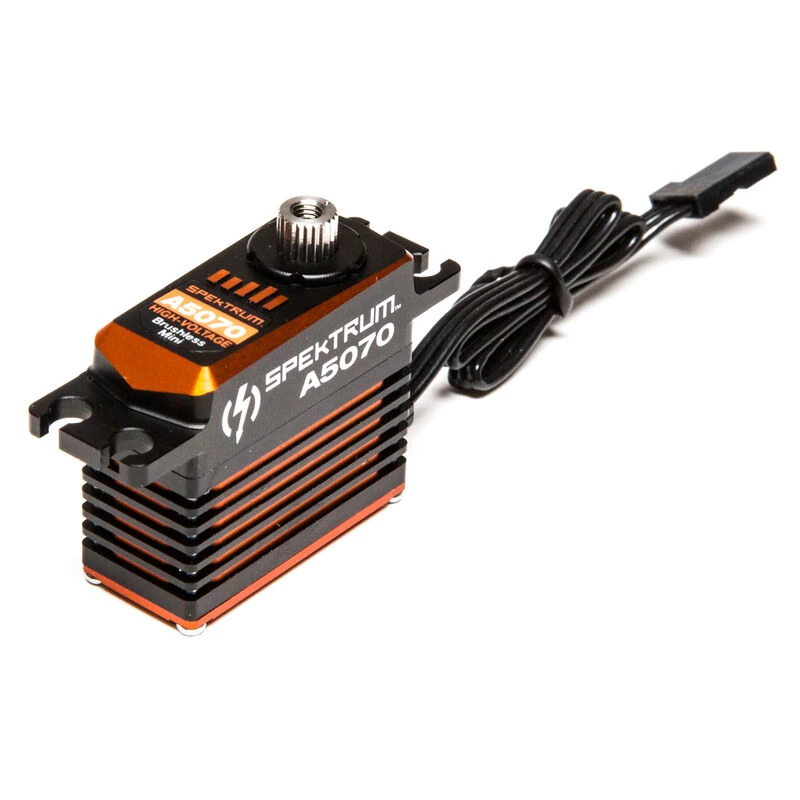

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo for Servos

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo for Servos - Image 2

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo for Servos - Image 3

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo for Servos - Image 4

Spektrum A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo for Servos

Original price was: $149.99.Current price is: $91.99.

SKU: SPMSA5070 Categories: Aircraft, Radios, Servos Tag: Spektrum

Shop the Best Quality Online
Shop with confidence, we guarantee quality.
Shop with ease, buy with confidence.
No-Questions-Asked Returns

Key Features

High torque both on HV and non-HV applications
Allows BECs of adjustable BEC ESCs to be set higher to increase performance
Acts as a heat sink for the motor and ESC
Low deadband, high resolution, with impressive holding torque for unmatched performance
Durable high performance finish

Servo Operating Voltage	6.0, -, 8.4V, (HV)
Programmable	No
Product Height	1.16, in, (29.4mm)
Deadband	2?s
Bushing Or Bearing	Bearing
Gear Type	Metal
Wire Gauge	22, AWG
Maximum Servo Speed	0.050-0.099, sec
Bearing	Dual
Servo Size Category	Mini
Product Weight	1.4, oz, (40g)
Connector Wire Length	11.8, in, (300mm)
Overload Protection	Yes
Max Servo Torque	100-199, oz-in
Application	Airplane, or, Heli
Rotation Range	120?
Product Length	1.32, in, (33.5mm)
Connector Type	Universal
Maximum Servo Torque	146.43, oz-in, @6.0V;, 190.58, oz-in, @, 8.4V
Product Width	0.59, in, (14.9mm)
Servo Type	Digital
