Spektrum A5080 MT/HS Mini Digital HV Servo for Servos
Original price was: $59.99.$41.99Current price is: $41.99.
- Shop the Best Quality Online
- Shop with confidence, we guarantee quality.
- Shop with ease, buy with confidence.
- No-Questions-Asked Returns

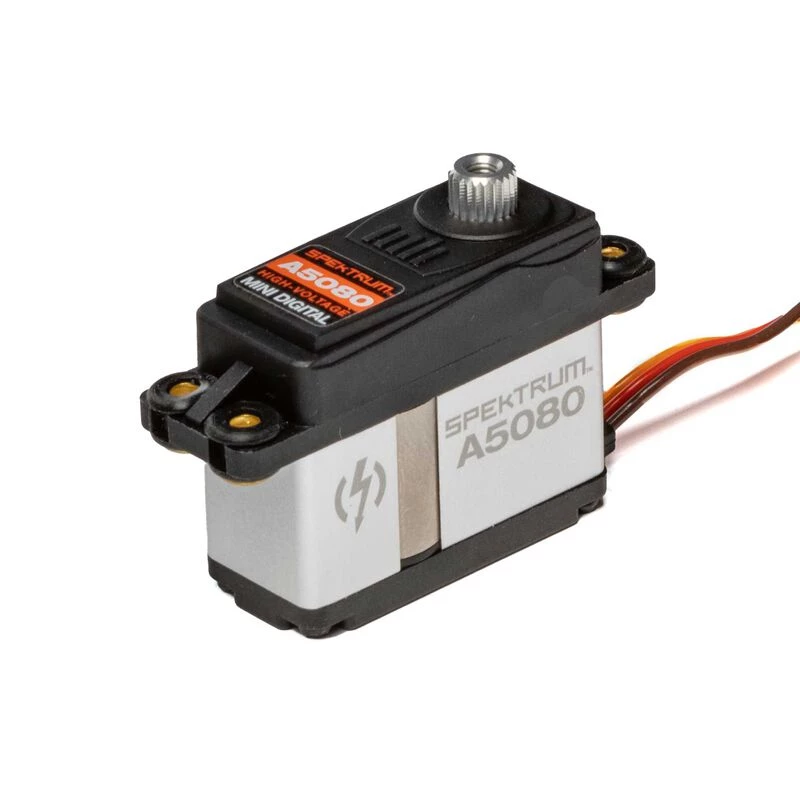

A5080 Mid Torque Mid Speed Mini Digital HV MG Servo
The Spektrum™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.
Features
- High Voltage (HV) capable (4.8 8.4v input range)
- Mini size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
| Servo Type | Digital |
|---|---|
| Servo Size Category | Mini |
| Servo Operating Voltage | 4.8, -, 8.4V, (HV) |
| Motor Type | Brushed |
| Max Servo Torque | 100-199, oz-in |
| Maximum Servo Speed | 0.14, sec/60, deg, @, 6.0V;, 0.11, sec/60, deg, @, 7.4V;, 0.094, sec/60, deg, @, 8.4V |
| Gear Type | Metal |
| Bushing Or Bearing | Bearing |
| Bearing | Single, BB |
| Programmable | No |

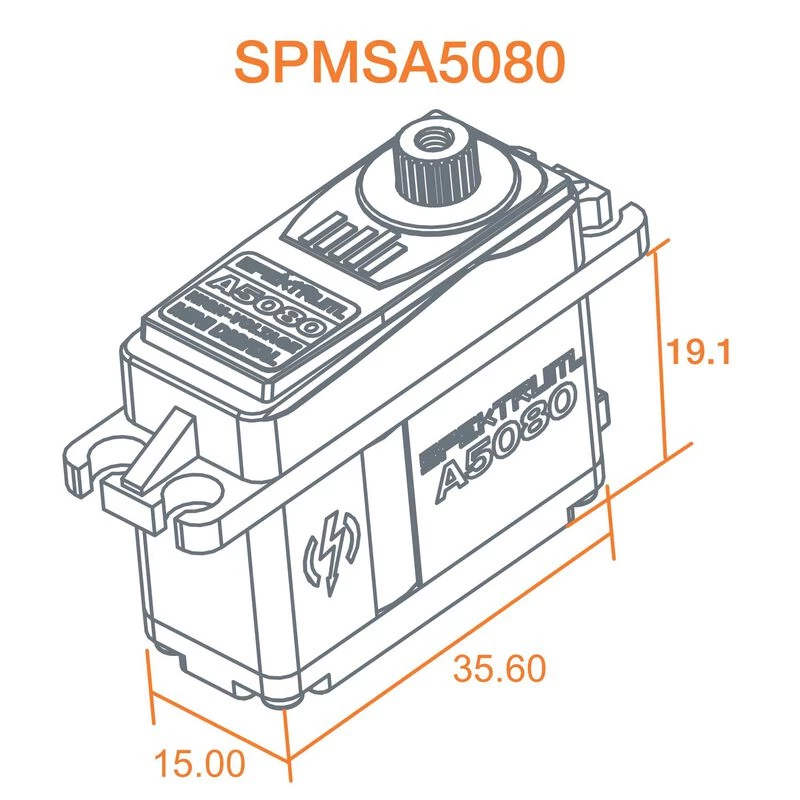

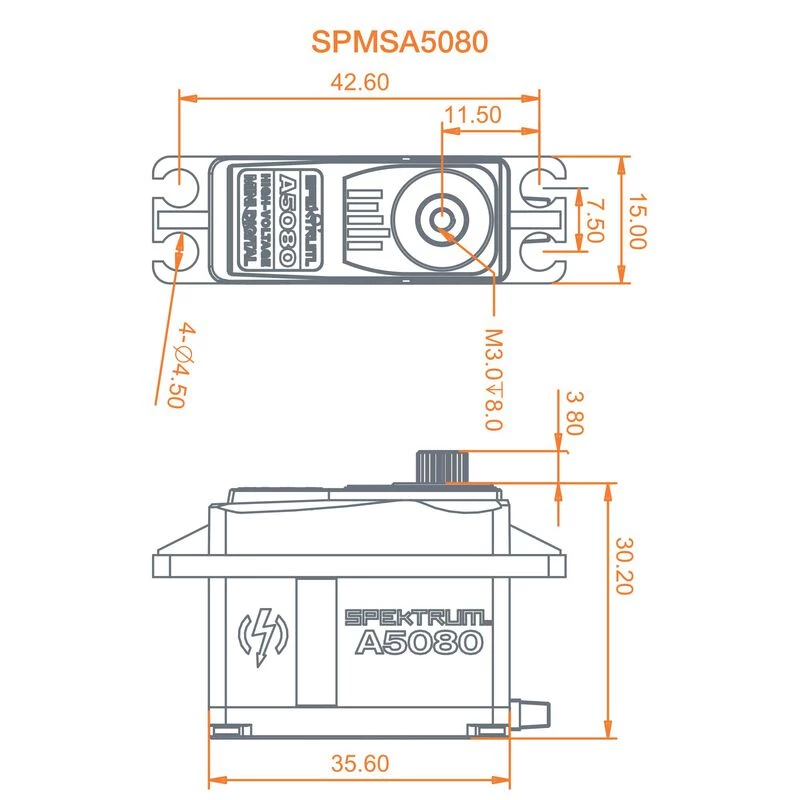

| Product Height | 1.18", (30, mm) |
| Material | Aluminium |
| Spline Count | 23, -, Tooth |
| Product Weight | 1.2, oz, (34g) |
| Overload Protection | No |
| Maximum Servo Torque | 110, oz-in, (7.92kg-cm), @, 6.0V;, 118, oz-in, (8.5kg-cm), @, 7.4V;, 130, oz-in, (9.4kg-cm), @, 8.4V |
| Product Length | 1.4", (36, mm) |
| Input Voltage | 4.8V-8.4V |
| Deadband | <1µs |
| Product Width | 0.59", (15, mm) |
