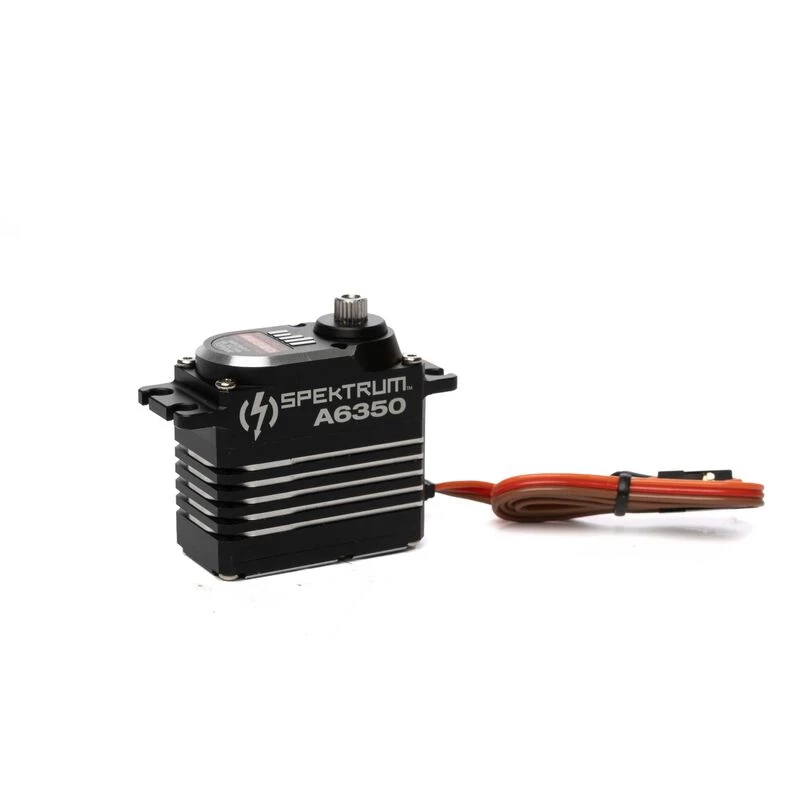

A6350 Ultra Torque High Speed Brushless MG HV Servo
The Spektrumâ„¢ A6350 Ultra-Torque / High Speed Brushless HV Servo is the next evolution in the expanding line of leading-edge performance servos from Spektrum”. Designed with the extraordinarily strong and reliable A6300-series brushless gear train, the A6350 servo takes power and speed to the next level! The A6350 is a top-of-its-class workhorse that’s ready for the demands of whatever giant-scale, 3D, or jet model you fly. And the A6350 servo is also a good choice for any application that requires high performance, high speed, and ultimate power.
Features
- High Voltage (HV) capable (6.0-8.4v input range)
- Superior torque and speed in a standard servo size (61.4 kg-cm and .095 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz
| Bearing | Dual, BB |
|---|---|
| Motor Type | Brushless |
| Product Height | 1.61", (41, mm) |
| Input Voltage | 6.0V, to, 8.4V |
| Servo Size Category | Standard |
| Material | Aluminium |
| Product Width | 0.83", (21, mm) |
| Servo Operating Voltage | 4.8, -, 8.4V, (HV) |
| Maximum Servo Torque | 576, oz-in, (41.5, kg-cm), @, 6.0V;, 725, oz-in, (52.2, kg-cm), @, 7.4V;, 852, oz-in, (61.4, kg-cm), @, 8.4V |
| Bushing Or Bearing | Bearing |
| Product Length | 1.61", (41, mm) |
| Spline Count | 23, -, Tooth |
| Product Weight | 3, oz, (85g) |
| Overload Protection | Yes |
| Max Servo Torque | 500+, oz-in |
| Maximum Servo Speed | 0.145, sec/60, deg, @, 6.0V;, 0.115, sec/60, deg, @7.4V;, 0.095, sec/60, deg, @, 8.4V |
| Gear Type | Metal |
| Servo Type | Digital |
