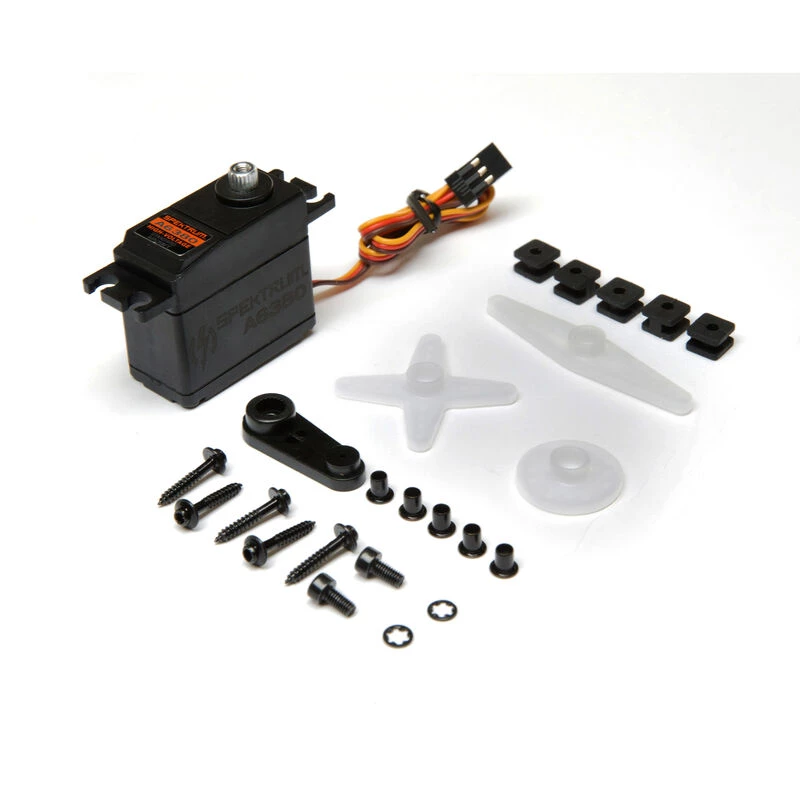

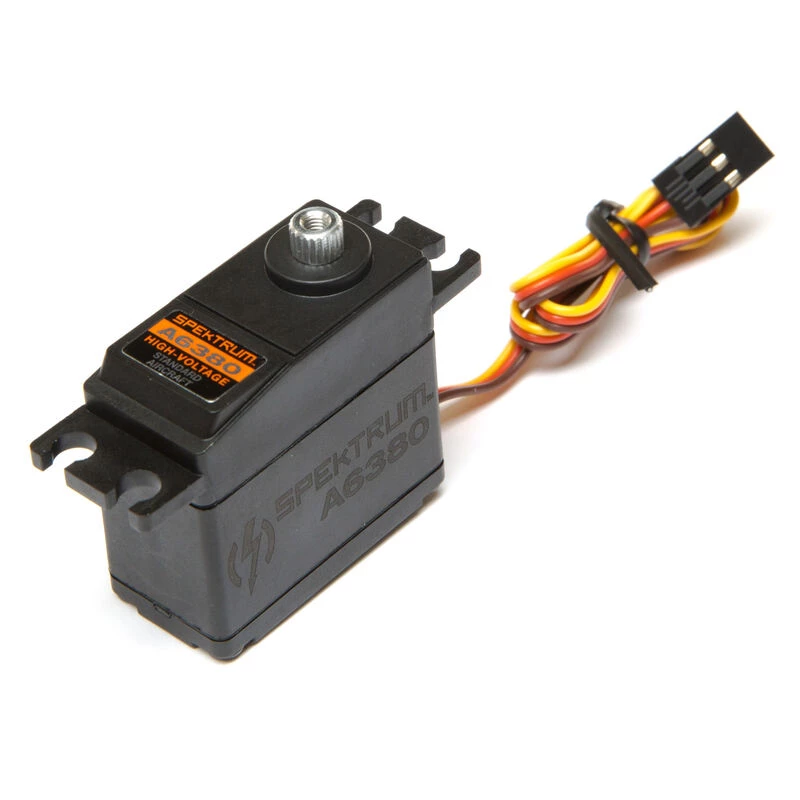

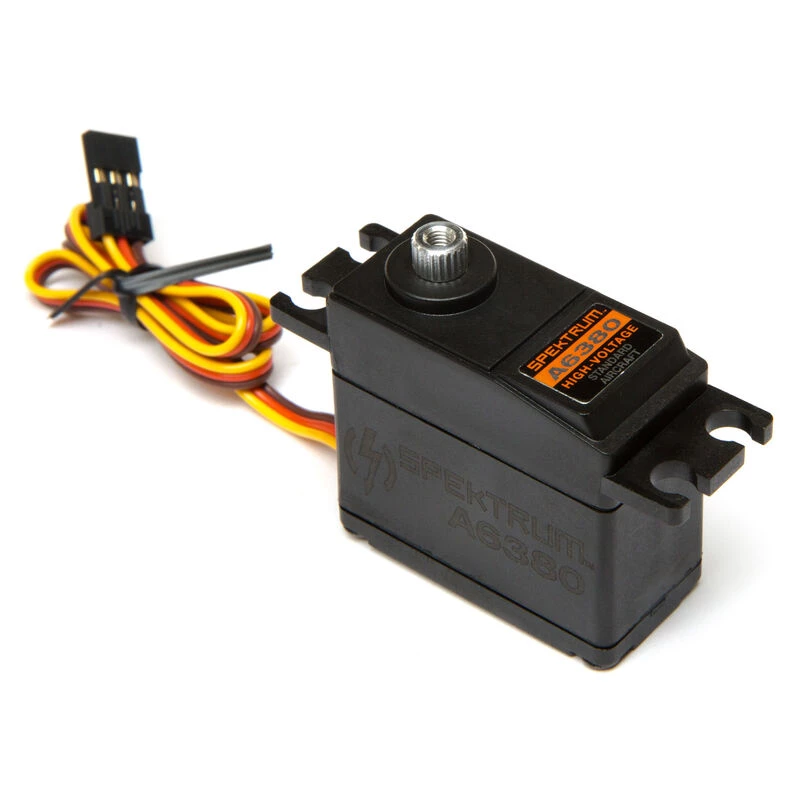

Spektrum A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo for Servos

Spektrum A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo for Servos - Image 2

Spektrum A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo for Servos - Image 3

Spektrum A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo for Servos

Original price was: $29.99.Current price is: $20.99.

SKU: SPMSA6380 Categories: Aircraft, Radios, Servos Tag: Spektrum

Shop the Best Quality Online
Shop with confidence, we guarantee quality.
Shop with ease, buy with confidence.
No-Questions-Asked Returns

The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.

Product Height	1.47, in, (37mm)
Maximum Servo Torque	102, oz-in, (7.3, kg-cm), @, 6.0V, 160, oz-in, (11.5, kg-cm), @, 8.4V
Maximum Servo Speed	0.100-0.149, sec
Gear Type	Metal
Servo Operating Voltage	6.0, -, 8.4V, (HV)
Product Width	0.74, in, (19mm)
Connector Wire Length	11.8, in, (299.7mm)
Product Length	1.52, in, (39mm)
Connector Type	Universal
Servo Size Category	Standard
Servo Type	Digital
Programmable	No
Max Servo Torque	100-199, oz-in
Application	Aircraft
Spline Count	23, -, Tooth
Product Weight	1.5, oz, (42.5, g)
Bushing Or Bearing	Bearing
Bearing	Dual
Wire Gauge	22, AWG
