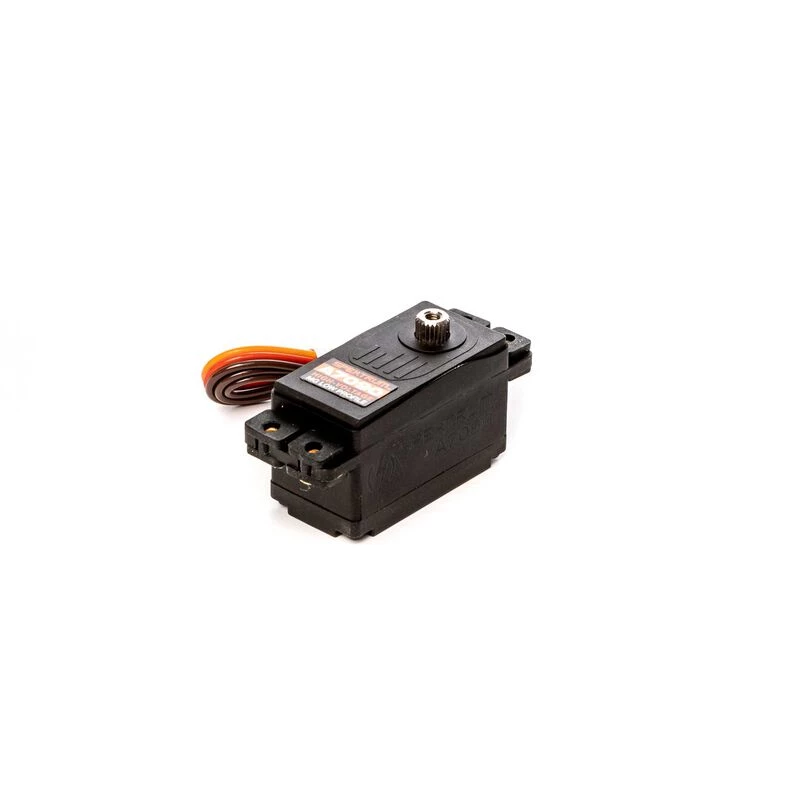

Spektrum A7090 Brushless Low Profile Metal Gear HV Servo for Servos
Original price was: $69.99.$48.99Current price is: $48.99.
- Shop the Best Quality Online
- Shop with confidence, we guarantee quality.
- Shop with ease, buy with confidence.
- No-Questions-Asked Returns
A7090 High Torque High Speed Brushless Low Profile MG HV Servo
The low profile Spektrum™ A7090 brushless digital metal gear servo offers superb performance at a great price for standard aircraft applications. High voltage capable, the A7090 can produce an impressive 18 kg-cm (250 oz-in) of torque at blazing fast 0.068 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting brushless motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise holding power. Like all Spektrum servos, the A7090 delivers reliability, consistency and performance that are second to none.
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Low profile design to fit into tighter spaces and shallow wing pockets
- Impressive torque and speed in a standard low profile servo size (18kg-cm and .068 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz
| Deadband | <1µs |
|---|---|
| Spline Count | 23, -, Tooth |
| Maximum Servo Torque | 205, oz-in, (14.76kg-cm), @, 6.0V;, 215, oz-in, (15.5kg-cm), @, 7.4V;, 250, oz-in, (18kg-cm), @, 8.4V |
| Maximum Servo Speed | 0.17, sec/60, deg, @, 6.0V;, 0.091, sec/60, deg, @, 7.4V;, 0.068, sec/60, deg, @, 8.4V |
| Gear Type | Metal |
| Bushing Or Bearing | Bearing |
| Bearing | Dual, BB |
| Servo Operating Voltage | 4.8, -, 8.4V, (HV) |
| Motor Type | Brushless |
| Product Weight | 1.8, oz, (50g) |
| Input Voltage | 4.8V-8.4V |
| Overload Protection | No |
| Max Servo Torque | 200-349, oz-in |
| Product Width | 0.81", (21, mm) |
| Servo Size Category | Low, Profile |
| Programmable | No |
| Material | Aluminium |
| Servo Type | Digital |
| Product Height | 0.99", (25, mm) |
| Product Length | 1.6", (41, mm) |
