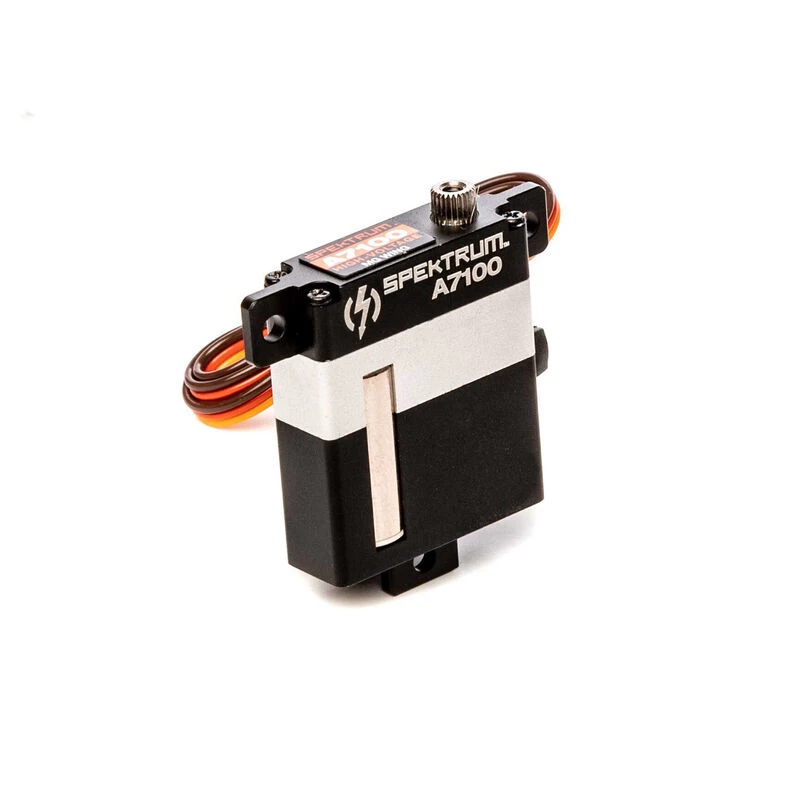

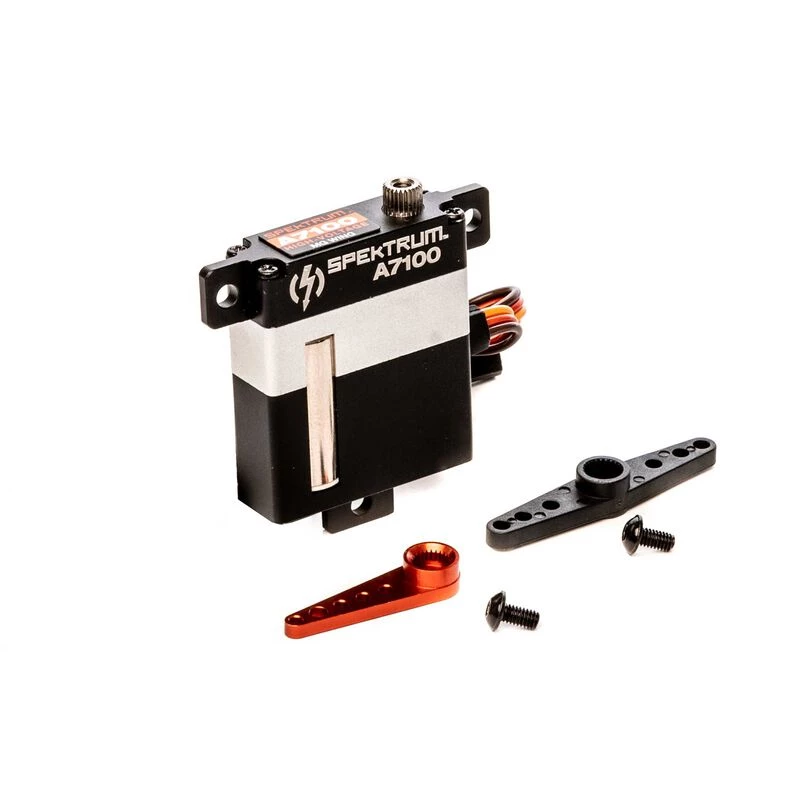

A7100 Mid Torque Mid Speed HV MG Thin Wing Servo
The Spektrum ™ A7100 digital metal gear servo offers phenomenal performance for sailplanes and other thin wing applications. High voltage capable, the A7100 can produce 8.3kg-cm (115 oz-in) of torque at fast 0.078 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting coreless motor and is ball bearing supported for smooth operation. It also features a full aluminum case plus low deadband and extraordinary precision. Like all Spektrum servos, the A7100 delivers reliability, consistency and performance that are second to none.
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Specifically designed for thin wing aircraft models and sailplanes
- Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz

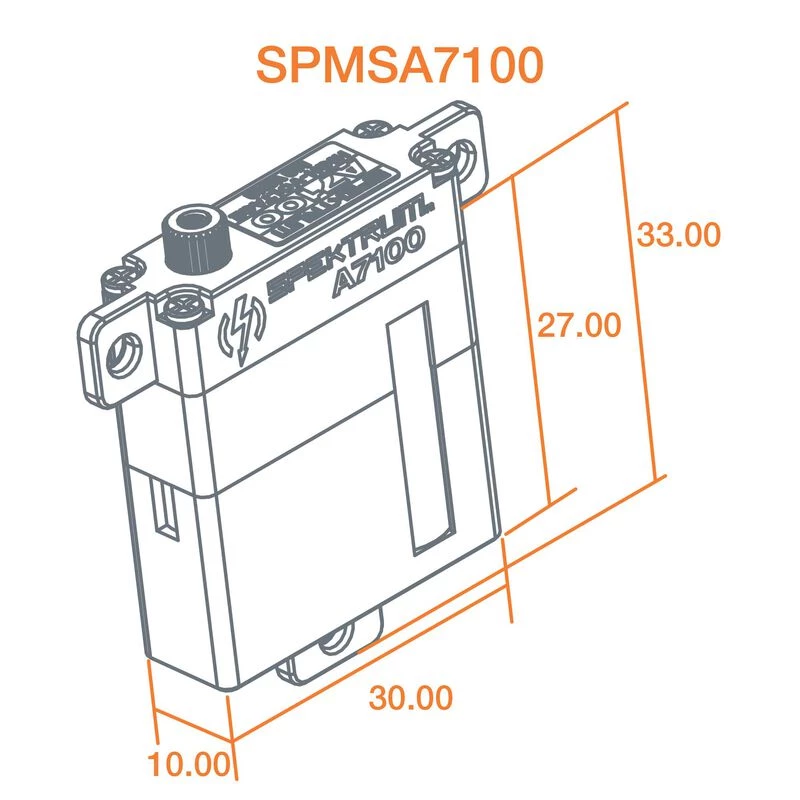

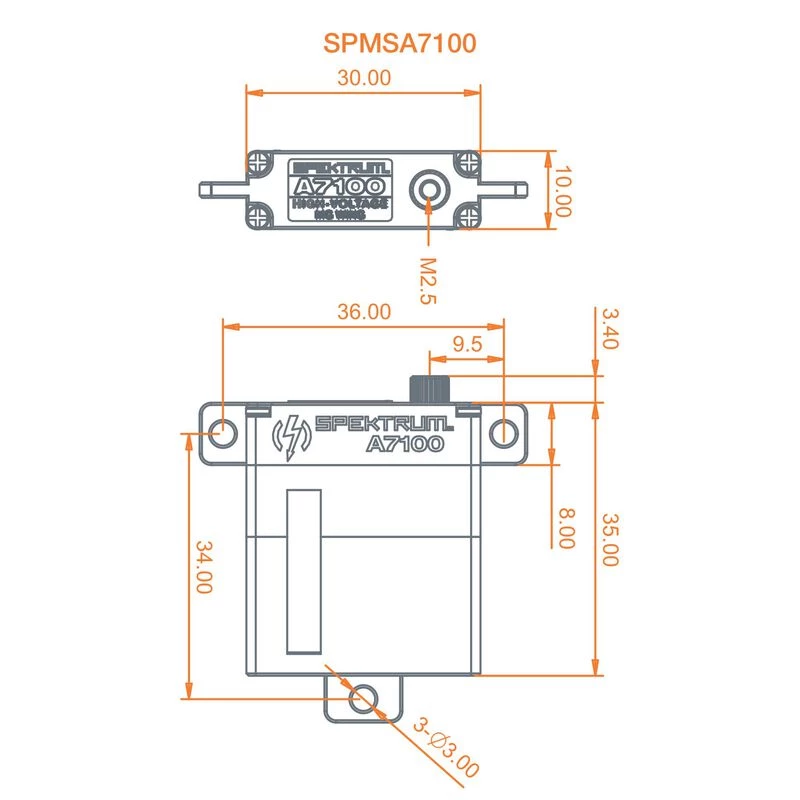

| Product Length | 1.18", (30, mm) |
|---|---|
| Motor Type | Brushed |
| Product Height | 1.38", (35, mm) |
| Maximum Servo Speed | 0.091, sec/60, deg, @, 6.0V;, 0.086, sec/60, deg, @, 7.4V;, 0.078, sec/60, deg, @, 8.4V |
| Gear Type | Metal |
| Bushing Or Bearing | Bearing |
| Bearing | Single, BB |
| Product Width | 0.39", (10, mm) |
| Programmable | No |
| Maximum Servo Torque | 96, oz-in, (6.9kg-cm), @, 6.0V;, 100, oz-in, (7.2kg-cm), @, 7.4V;, 115, oz-in, (8.3kg-cm), @, 8.4V |
| Servo Size Category | Thin |
| Spline Count | 25, -, Tooth |
| Product Weight | 1.0, oz, (28g) |
| Overload Protection | No |
| Max Servo Torque | 100-199, oz-in |
| Input Voltage | 4.8V-8.4V |
| Deadband | <1µs |
| Servo Type | Digital |
