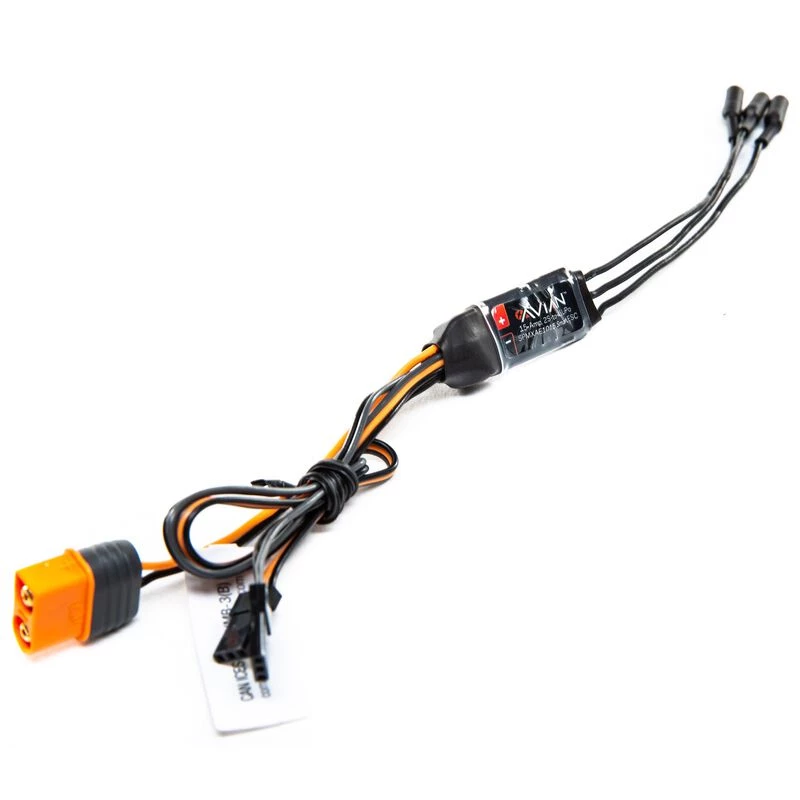

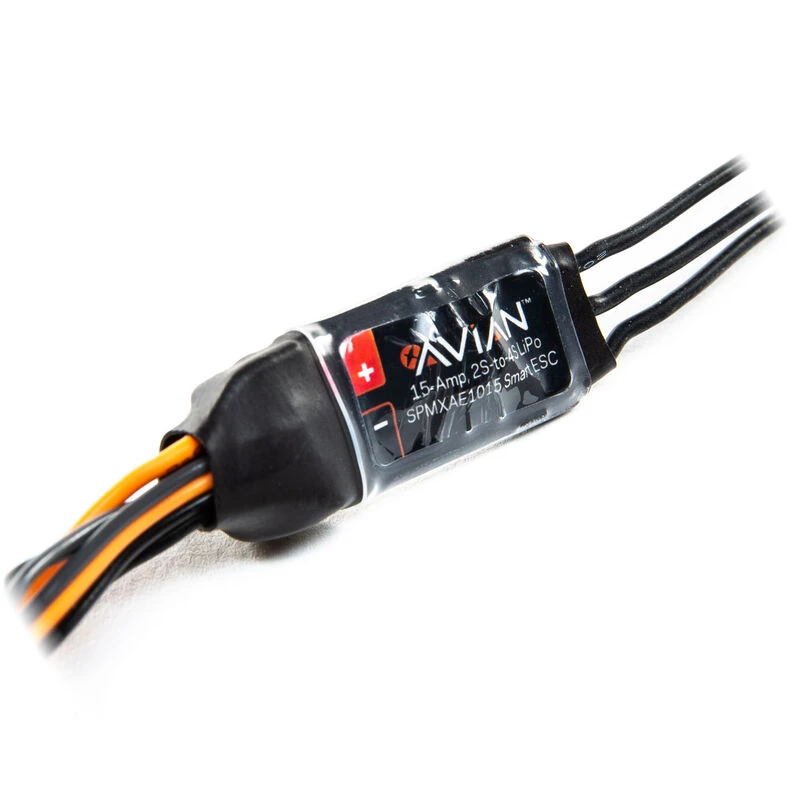

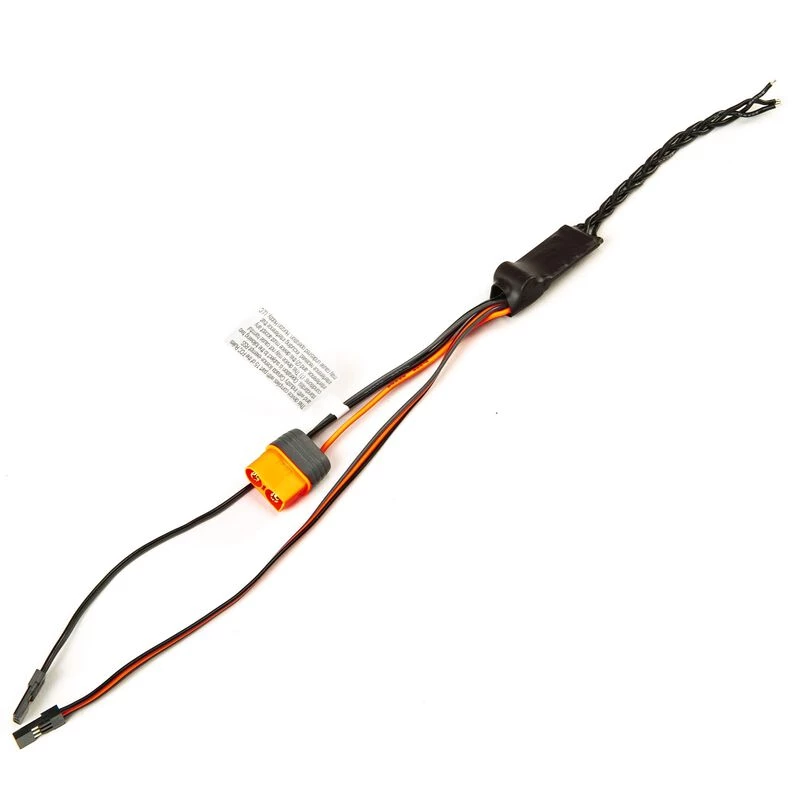

Spektrum Avian 15 Amp Brushless Smart ESC, 2S-4S for Electronic Speed Controls
Original price was: $34.99.$24.49Current price is: $24.49.
- Shop the Best Quality Online
- Shop with confidence, we guarantee quality.
- Shop with ease, buy with confidence.
- No-Questions-Asked Returns
Product Overview
Like every component in the Spektrumâ„¢ Smart ecosystem, Avianâ„¢ Smart ESCs combine “plug-and-play” simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you’ll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won’t need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You’re able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Please note – The Spektrum Avian Smart 15A ESC does not include the Smart Battery Data Wire and does not provide Motor Current. Battery telemetry data will not be transmitted (Battery Temp, Battery Cycles, Battery Cell Balance). Only the following ESC telemetry will be provided; Input Voltage, Throttle Input and Output %, ESC FET Temp and Motor RPM.
Product Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrumâ„¢ engineers, in partnership with the industry’s leading ESC manufacturer
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Heat dissipating design
- Dual BEC power connectors
- Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
- High heat-resistant ICâ„¢ connectors, backwards compatible with ECâ„¢ connectors
- Limited 1-year warranty
| BEC | Yes |
|---|---|
| Maximum Continuous Current | 15A |
| Reverse | Yes |
| Forward | Yes |
| Technology | Smart |
| Product Width | 0.6", (16mm) |
| Battery Input Lead | 2.9", (75mm), 20AWG |
| Product Weight | 0.6oz, (16g) |
| Low-Voltage Cutoff Programmable | Yes |
| BEC Continous Current | 3A |
| Auto Cutoff | Yes |
| Maximum Burst Current | 25A |
| BEC Maximum Burst Current | 12A |
| Product Length | 1.4, (35mm) |
| Connector Type | IC3 |
| Programmable | Yes |
| Brakes | Yes |
| Adjustable Timing | Yes |
| Product Height | 0.4", (11mm) |
| Part Type | Electronics |
| Motor Output Lead | 3.9", (100mm), 20AWG |
| Input Voltage | 2S, -, 4S, LiPo |
| BEC Voltage | 5.2V |
| BEC Type | Linear |
