Sale!

Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo for Servos

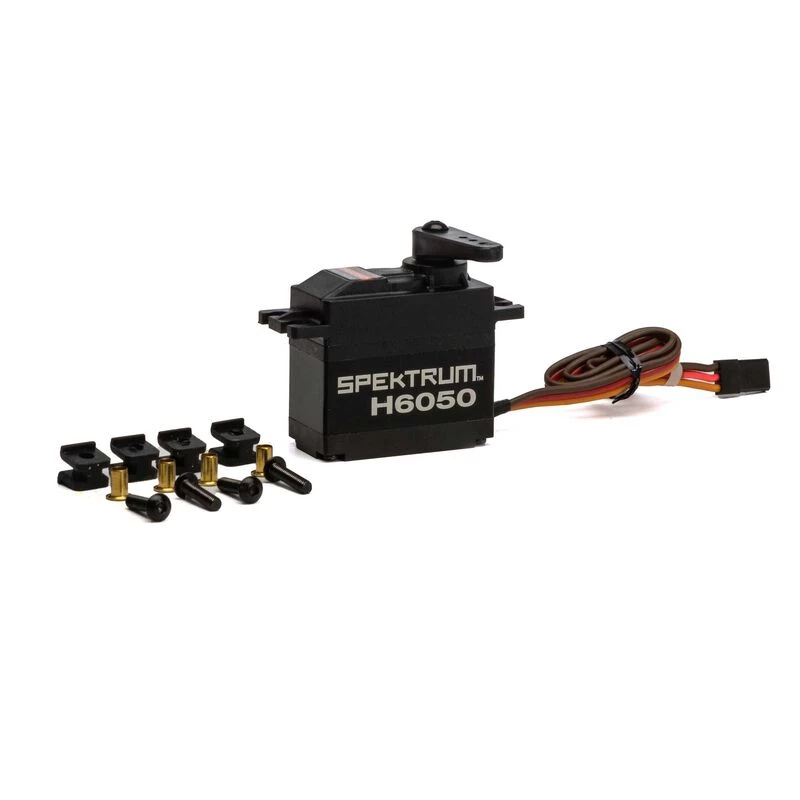

Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo for Servos - Image 2

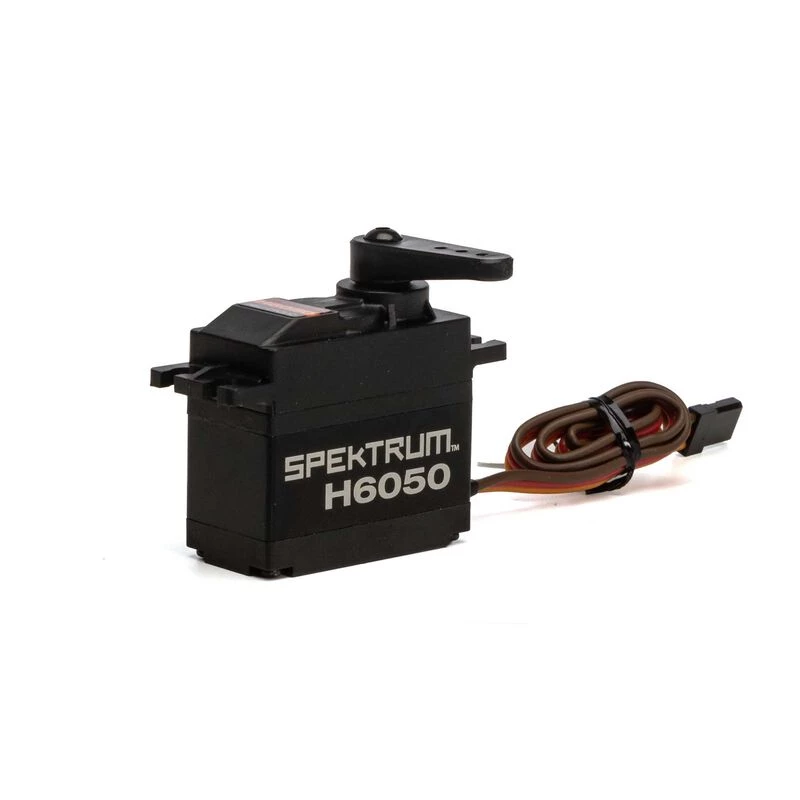

Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo for Servos - Image 3

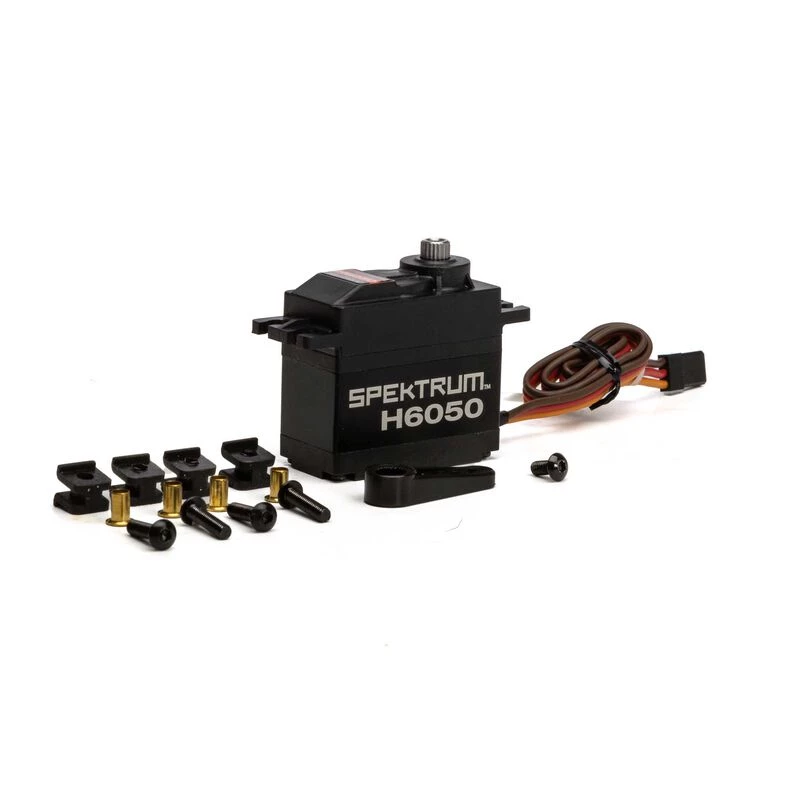

Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo for Servos - Image 4

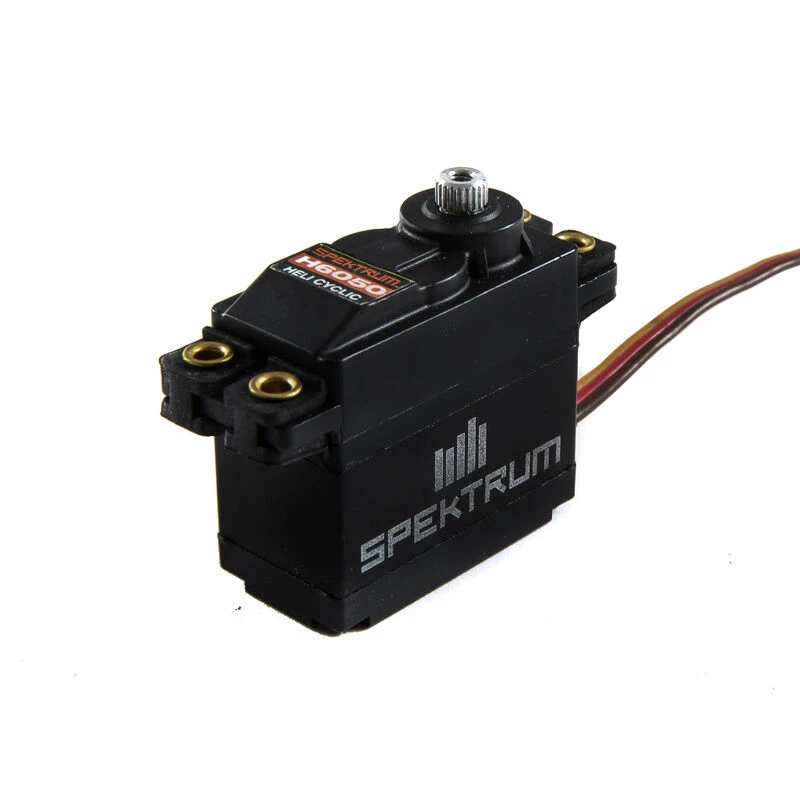

Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo for Servos - Image 5

Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo for Servos

Original price was: $69.99.Current price is: $48.99.

SKU: SPMSH6050 Categories: Aircraft, Radios, Servos Tag: Spektrum

Shop the Best Quality Online
Shop with confidence, we guarantee quality.
Shop with ease, buy with confidence.
No-Questions-Asked Returns

The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.

Standard size servo for 500 size Helicopter models and smaller
160oz Torque and .103 sec speed at 6.0v
4.8v-6.0v input voltage
Long 10 inch (255mm) connector wire to reduce the need for extensions
23 Tooth spline
Bearing supported output spline

Deadband	Less, than, 1?s
Bearing	Dual
Rotation Range	120, deg
Product Length	1.57, in, (40.0, mm)
Connector Type	Universal
Wire Gauge	22, AWG
Maximum Servo Speed	0.103, sec/60, deg, @, 6.0V, at, no, load
Gear Type	Metal
Bushing Or Bearing	Bearing
Application	Heli, Cyclic
Product Height	1.51, in, (38.3, mm)
Product Weight	2.2, oz, (62g)
Max Servo Torque	100-199, oz-in
Servo Size Category	Standard
Programmable	No
Product Width	0.79, in, (20.0, mm)
Connector Wire Length	10, in, (255mm)
Servo Operating Voltage	4.8, -, 6.0V
Servo Type	Digital
Maximum Servo Torque	160, oz-in, (11.5, kg-cm), @, 6.0V
