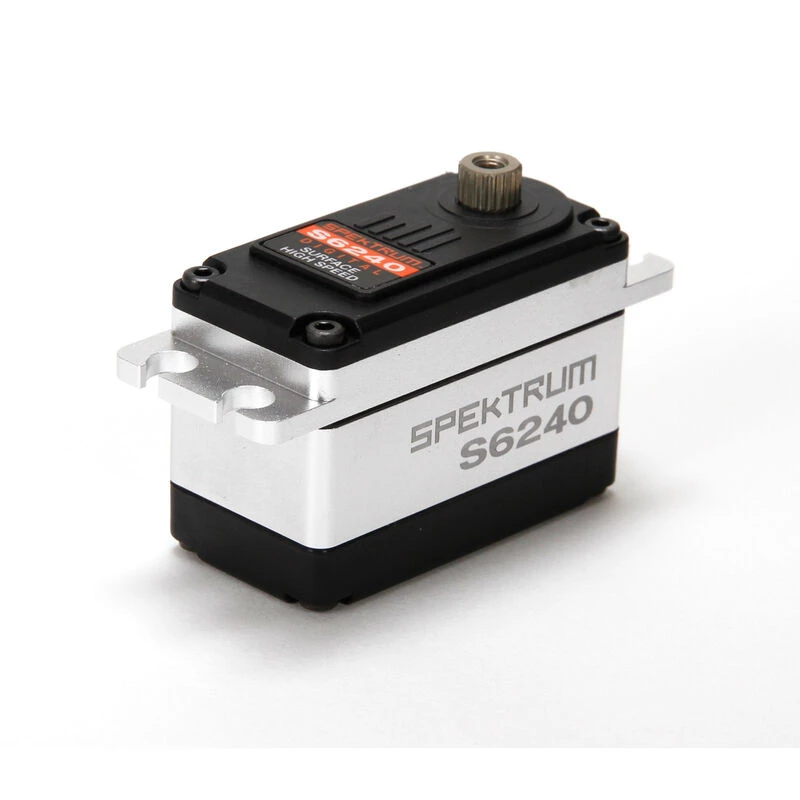

Spektrum S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo for Servos
Original price was: $89.99.$62.99Current price is: $62.99.
- Shop the Best Quality Online
- Shop with confidence, we guarantee quality.
- Shop with ease, buy with confidence.
- No-Questions-Asked Returns
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty

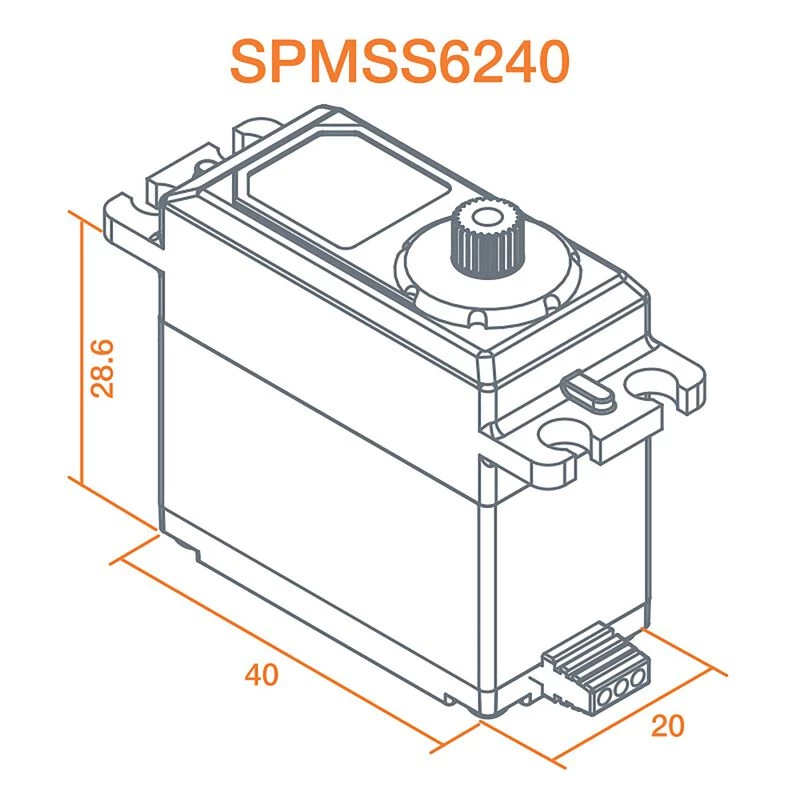

| Product Height | 1.18, in, (30mm) |
|---|---|
| Maximum Servo Torque | 208, oz-in, (15.0kg-cm), @, 6.0V |
| Current Draw Stall | 4.9A, @, 6.0V |
| Product Width | 0.82, in, (20.9mm) |
| Current Draw Idle | 9.8, mA, @, 6.0V |
| Connector Wire Length | 7.87, in, (200mm) |
| Servo Size Category | Standard |
| Programmable | No |
| Rotation Range | 120, deg |
| Product Length | 1.61, in, (41mm) |
| Spline Count | 23, Teeth |
| Servo Type | Digital |
| Product Weight | 2.1, oz, (59.5g) |
| Max Servo Torque | 200-349, oz-in |
| Application | 1/10, Buggy, Truck, On-Road |
| Wire Gauge | 22, AWG |
| Maximum Servo Speed | 0.050-0.099, sec |
| Gear Type | Metal |
| Bushing Or Bearing | Bearing |
| Bearing | Dual |
| Servo Operating Voltage | 6.0V |
